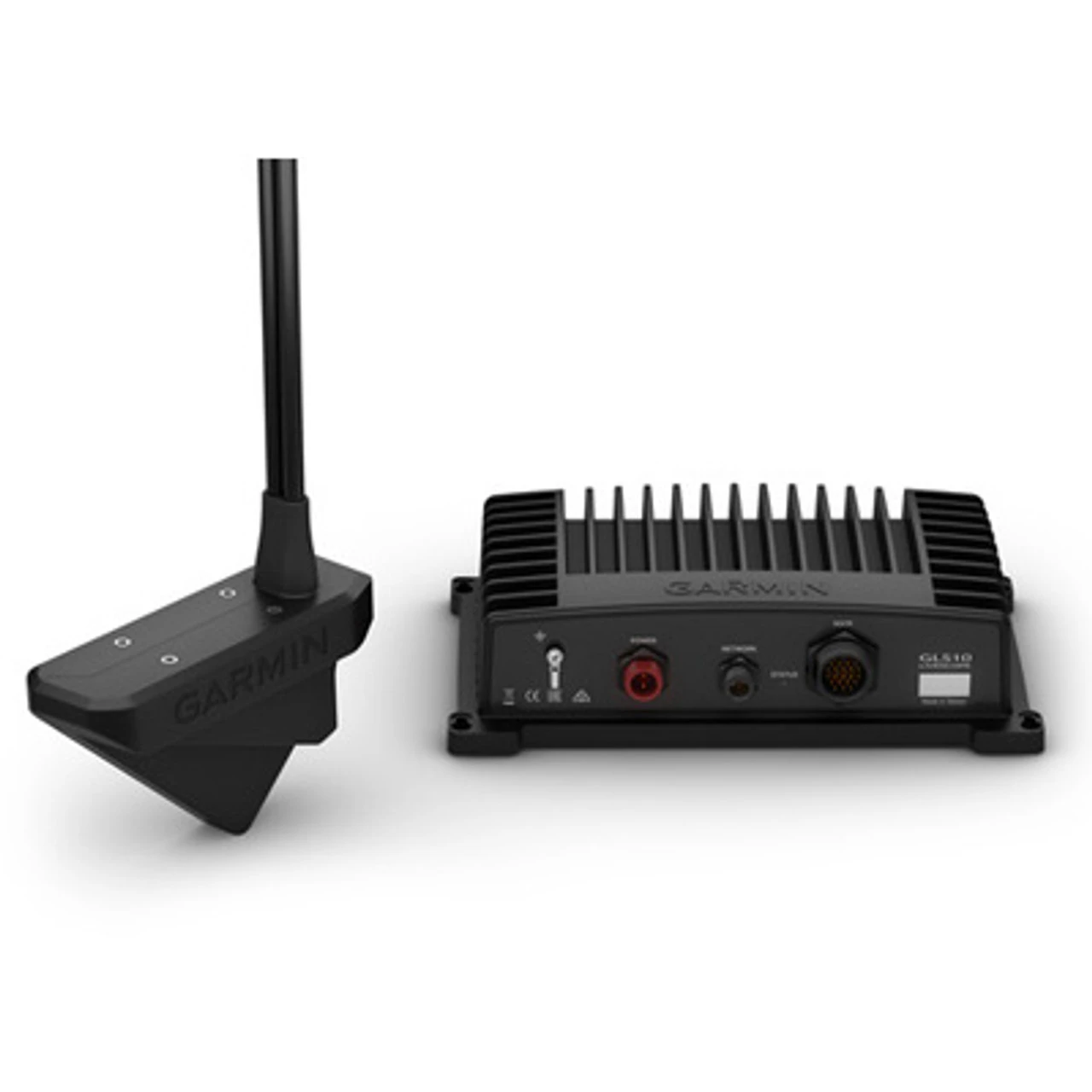

Panoptix LiveScope System By Garmin

LIMITED TIME OFFER: Get a free VDW Garmin Hoodie with the purchase of any Garmin unit!  ** Shirt must be added to cart! Click here to select color/size. **



Panoptix LiveScope is live, real-time scanning sonar. You can actually see easy-to-interpret live scanning sonar images of fish swimming near clearly defined structures. You can even see your lure as you retrieve it. And your boat doesn’t need to be moving. These images are so clear and precise that with a little practice, you might be able to distinguish between species of fish!



You get both LiveScope™ Down and LiveScope™ Forward modes in one transducer. It’s easy to adjust the transducer mode to fit your fishing techniques; use LiveScope Forward to see remarkably clear images of structure and swimming fish around your boat, and use LiveScope Down to see directly below your boat. The view automatically updates on your compatible Garmin chartplotter. AHRS stabilization keeps your sonar view steady, even in rough conditions.



LiveScope Down mode allows you to see live, easy-to-interpret scanning sonar images of structure and swimming fish in incredible detail below your boat –up to 200′ — even while your boat is stationary.

Physical Dimensions	GLS 10 Sonar Black Box: 9.6″x5.9″x2.6″ LVS32 Transducer: 5.4″x3.8″1.8″
Weight	GLS 10 Sonar Black Box: 4.3lbs LVS32 Transducer: 1.9lbs
Water Rating	IPX7
Garmin Marine Network Ports	1 (small connector)
Temperature Range	GLS 10 Black Box: Operating: -15 C to 70C Panoptix LiveScope LVS12 Transducer: Operating: 0 C to 40 C































Frequencies Supported	530- 1,100 kHz
Transmit Power	500 W
Maximum Depth	Down and Forward: 200′



Power Input	10-32 V
Power Usage	21 W typical, 58 W max
Fuse	7.5 A
